GS Healthcare provides cost-effective Imaging System to all kinds of C-Arm equipment and R/F Room with dynamic real-time image acquisition and post processing featuresfrom system based on image intensifiers to flat panel detectors.
Your current System

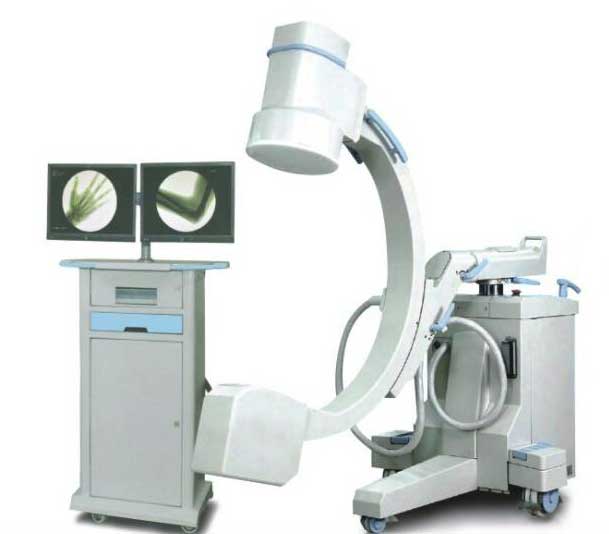

C-arm system without imaging chain
.png){kind=icon}
Eikon Imaging Software SuiteSolution
Image Processing PC
Software
1K Camera Lens
Connecting Cables
Interface Hardware
Trolley
Enhanced Image Quality
We have special image processing algorithms provides best quality image with minimal x-Ray Dose. Our data acquisition and image-processing technologies ensure consistently high quality images.
Features
The Eikon Imaging Software Suitesystem is easy to integrate with any C-arm system that is used in General Surgery, Orthopaedics Procedures, Urology, Neurological Surgery, Interventional Vascular Procedures and Interventional Cardiology Procedures.
User Friendly Interface
The system is ready to interfaced with any image intensifier, 1K video kits, X-ray generator/controller and would control all the functions directly from remote control providing an easier work to doctors during procedure.
What do we provide?
Flexible & Customization
The flexibility and customization give a significant advantage in the market sales and product., we are able to offer the better solution to your systems., we can integrate any video kit, flat panel detector to develop and upgrade your present X-ray and C-arm system.
All Features
The Eikon Imaging Software Suitepackage offers all features, i.e., real time image acquisition , annotations, measurement, post processing image enhance features, patient database information,, roadmapping, pixel shifting, image save and features on remote control and many more.
Systems Configuration
There are 3 systems configurations,
1. Eikon Imaging Software SuiteSoftware only solutions based on licensing for OEMs.
2. Eikon Imaging Software Suitecomplete system solutions to upgrade/ new C-arm system to 1k.1k imaging and flat panel detector to OEM/ service provider and Doctors.
3. Eikon Imaging Software Suitefor industrial NDT application.
Features
Acquisition
Image capture @ 1024 x 1024, 12 bit up to 25 FPS
Automatic Dose Regulation/Automatic Brightness Control
Live Image Processing (Contrast/Brightness/Sharpness)
Last Image Hold
Transfer to Reference Monitor
PC based solution – With OS hardening & white listing
Post Processing
Frame by Frame Viewing
Thumbnail view
Image Zoom with Horizontal and vertical panning
Image Zoom with Horizontal and vertical panning
Export Images
Image Negative
Rotation – 360 degree (1 degree/step)
Horizontal Flip, Vertical Flip and Both.
Storage
PC based solution has image storage >100 patient database
Image Storage @ 1024x 1024, 12bits per pixel
Run Storage (up to 500 frames)
Ease of use of patient data management
USB memory stick support for image transfer in TIFF format.
General
Graphical User Interface (GUI based software)
Logging Support
GigE Vision Camera interface
Display – HDMI/DVI/VGA
Supports >200,000 Image storage (1024x1024 @12bit)
Supports Dual Monitor / Single wide Monitor
Remote Control for easy operation (Optional)
Upgradable software solution for DSA Cardiac (Optional)
